Kivo Elite Series
The Kivo Elite series are high quality, aluminum constructed red light therapy devices designed for the user that is interested in more control over their red light experience, through the use of dimmers, timers, and modulation. Our Elite Series devices come with an industry leading 3 year warranty.
Elite Specifications
- Irradiance at 3 inches: 190mw/cm²
- EMF emission: 0 @ 3 inches
- Constructed from painted aluminum
- Lens Angle: 30 degree
- Lifespan: >50,000 hours
- Certifications: FDA, ROHS, CE, FC
- Cooling fan
- Red light option, NIR option, RED+NIR option, (ELITE-7 comes with a Blue light option)
- Timer
- Brightness
- Modulation modes
- Sound: 52db @ 15cm
- Warranty: 3 year
- Return Period: 30 days
What's in the Box?
- Kivo Elite Series panel
- Remote Control
- FREE Kivo Goggles
- Power Cable
First Use
Remove the Kivo Elite Series from the packing box, ensure no protective film is on the front of the unit. Ensure the switch on the rear is set to off, then plug in the device (we recommend using a surge suppressor power bar to extend the life of the device). Switch on, and then you can select either RED LIGHT ON, NIR (NEAR INFRA-RED) ON, or both on together. You can set the timer as well the brightness according to your needs.
How to use your Kivo Elite Series Panel
This guide will apply to the Kivo Elite 300 / 1000 / 1500 / 2400 / 3600 panels and any other panel in the Elite series.

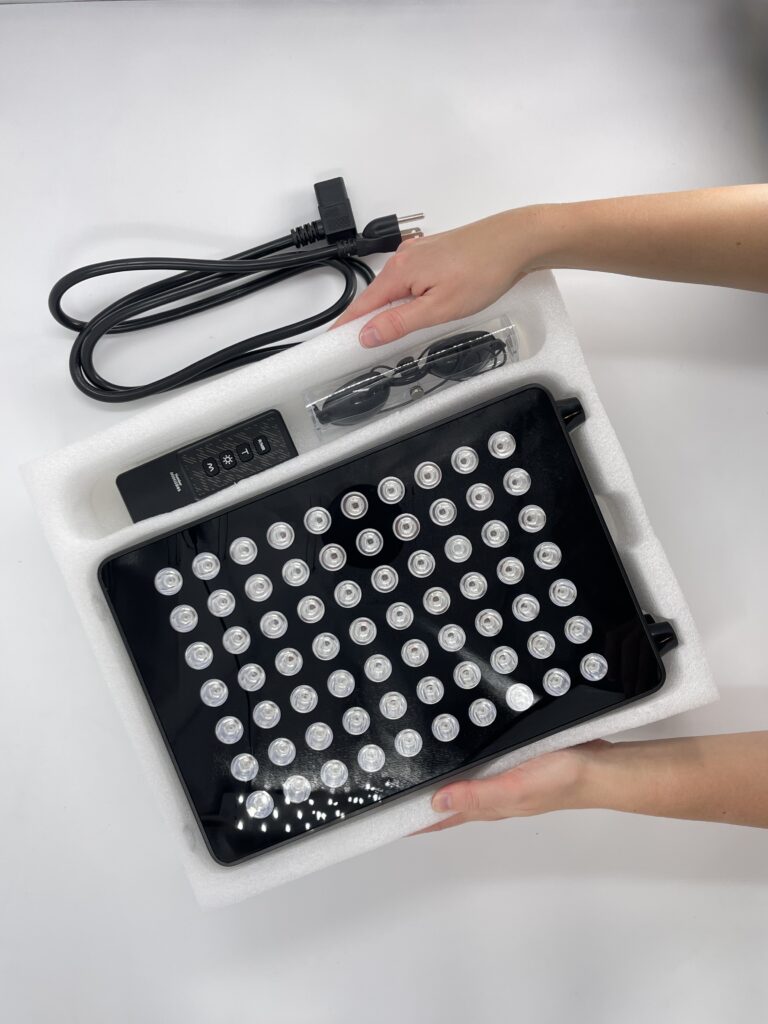

Unpack all of the components of your Kivo Elite Panel and lay them out.
Inside the box you'll receive:
- Kivo Elite Panel
- Power Cord (longer ones are available to purchase if required)
- Remote control (Uses a 23A 12V battery)
- Googles (more are available if you need)

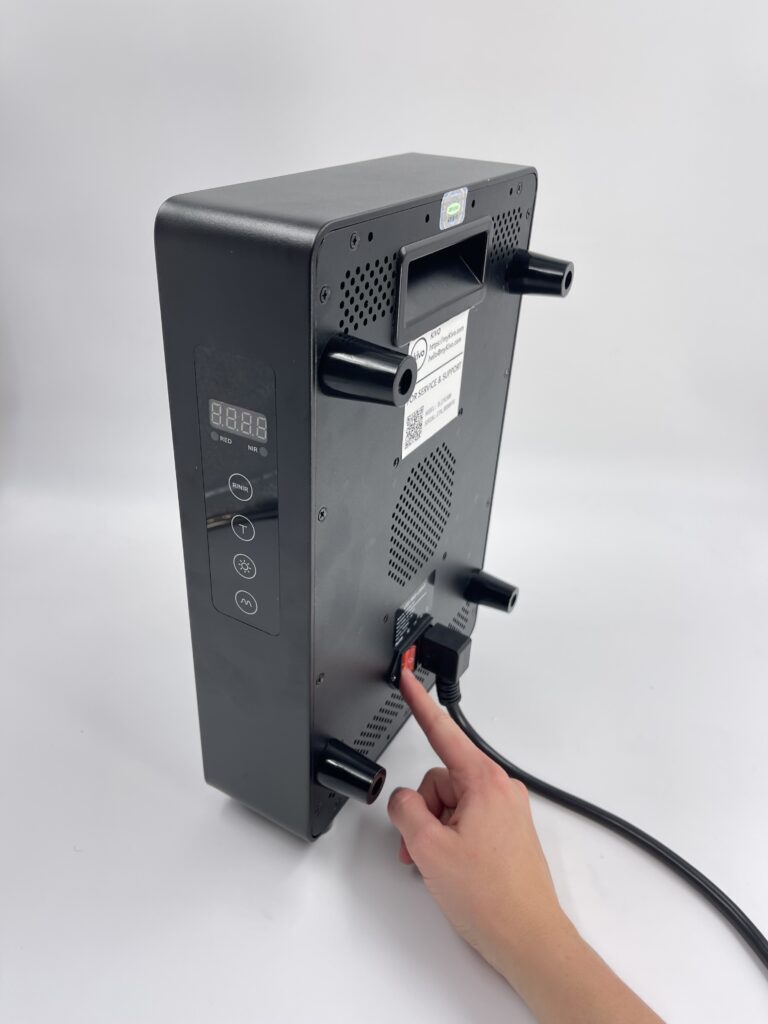

Ensuring the device is powered OFF, insert the power cable firmly, ensure it's seated fully in, and then switch on the device.
We do this to help prevent electrical surges to the control systems of the panel - ensuring your devices lasts longer.
On the side of the machine, from the top down you'll see:
- LCD panel - showing timer status
- RED indicator NEAR-INFRARED (NIR) indicator
- R/NIR - Red / Near-Infrared button
- T - Timer Button
- Brightness
- Pulse Modulation

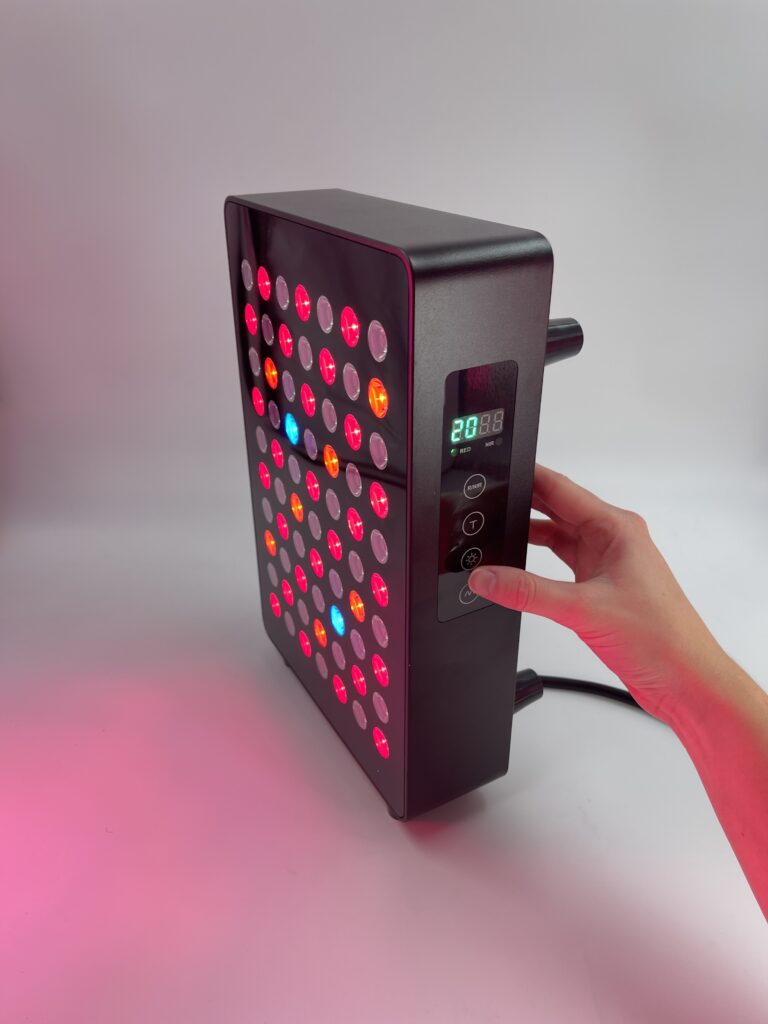

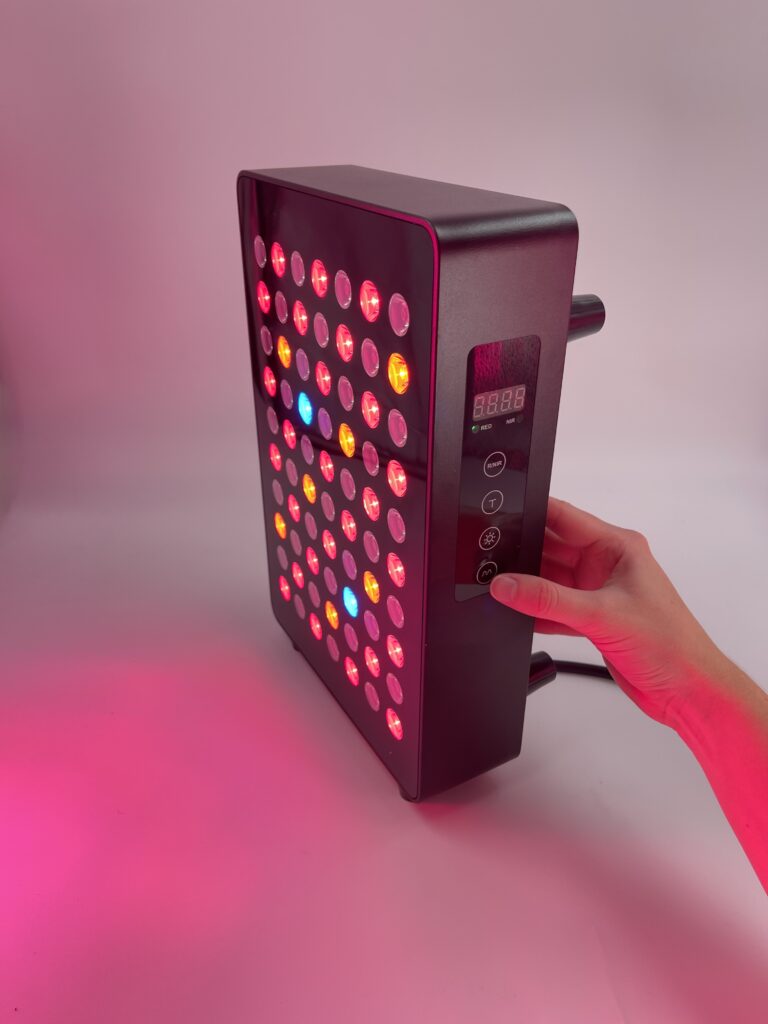

Press the R/NIR button to switch the panel on. Both Red Light & Near Infra-Red will switch on - both of the indicator LED's will show that all the wavelengths are on (if your panel is equipped with 7 wavelengths i.e. Blue light, you will see 2 blue led's on the front, blue light is enabled when the Red only light is on).
You can cycle between RED only, NEAR-INFRARED ONLY, or BOTH.
As a reminder, if you use this panel within your eye line or near your face, you must use the supplied googles to protect your eyes.
The T button allows you to select the number of minutes the panel will automatically switches off.
You can select ON for the panel to remain on until you manual switch it off.
The Brightness button allows you to select the percentage brightness of the panel, 20%, 40%, 60%, 80%, or 100%
The Pulse Modulation button allows rapid flashing of the LEDs as a therapeutic aid. You can select the HERTZ of the pulse mode by pressing on the button.
Please note, if you're sensitive to flashing lights or have photo-sensitive epilepsy, we do not recommend using this function.
Frequently Asked Questions
Yes, you can select 30 minutes, all the way through to 5 minutes, in 5 minute increments, just be using the select button.
Yes, you can have RED LIGHT only, NIR ONLY, or a combination of both
Blue light is amazing for acne, spots, and skin issues. The blue light helps kill bacteria, viruses, and fungi - and Red + NIR helps your skin heal itself
You can only disable blue light using our PRO set of Red Light Therapy Panels. You can however obtain small window sucker type accessories to block the blue light if necessary.
